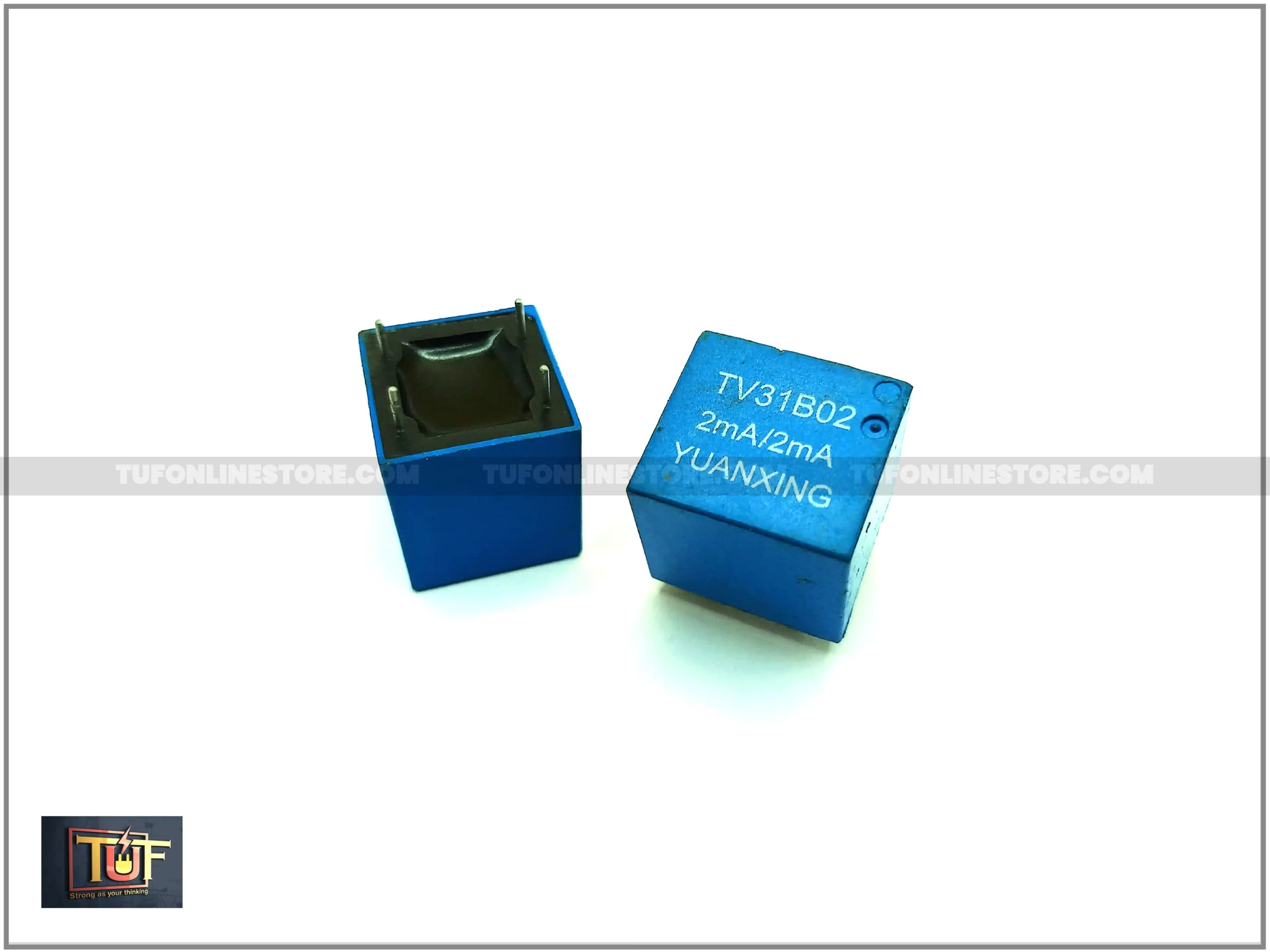

TV31B02 2mA/2mA Voltage Transformers ZMPT [ 2 Pieces Pack ]

₹80.00

Availability: 59 in stock

Quantity	Discount (%)	Price
1 - 2	—	₹80.00
3 - 5	2.5 %	₹78.00
6 - 8	6.25 %	₹75.00
9 - 10	10 %	₹72.00
11 - 15	12.5 %	₹70.00
16+	15 %	₹68.00

Category: Transformer

PCB Mounted, Current Style Voltage Transformer
The TV31B Series of PCB mounted current style voltage transformer is designed
for application where an AC current signal must be transformed into lower AC
voltage signal appropriate for micro-processor based circuits.
The TV31B series is essentially a mA current transformer with a 1:1 ratio. A
limiting resistor in series with the primary winding is a requirement. The small
physical dimensions are designed specifically for integration into products
which require exceptionally accurate signal transformation with low phase shift while exposed
to harsh environmental operating conditions.
Specifications:
Input/ Output Options:
1mA/ 1mA
2mA/ 2mAFrequency: 50 to 1000 Hz
Voltage Rating: 600VAC
Dielectric Resistance: 1,000 MOhms @
500 VDC
Isolation Voltage: 4000 VRMS for 1 minute
@0.5 mA.
Surge withstand potential: 5000V
(1.2/50µ second standard shock wave)
Operating Temperature: -40°C to +85º C
Construction:
Case Material: ABB or PBT Resin, UL
94 V-0
Interior Insulation: Epoxy resin

Weight	0.030 kg
